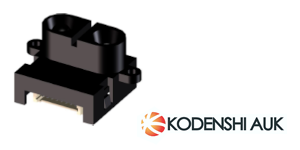

Time-of-Flight ToF Sensors (Kodenshi)

Time-of-Flight ToF Sensors Kodenshi
Distance measurement using infrared IR laser technology

Housing with screw mounting and connector (connection via cable possible). Measures "distance" by calculating the amount of time it takes to emit and return light (Very accurate distance detection possible).

Time-of-Flight Sensor ToF Technical Description
Sensor Typ
Output
Detektierte Entfernung
Eigenschaften
Kodenshi Artikelnummer
ToF
 Digital UART
30 to 800cm, 850/940nm
Screw Mount with Connector
high-precision, with MCU
(Built-In Calibration/Firmware)

KMED105C-85/-94
  Digital I2C
30 to 800cm, 850/940nm
Screw Mount with Connector
high-precision, with EEPROM
(Built-In Calibration + User Firmware)


KMED108C-85/-94
  Digital I2C
30 to 800cm, 850/940nm
Screw Mount with Connector
high-precision, without MCU
(User Calibration & User Firmware)
KMED103C-Ax-85/-94
